The Shirt Show
T-Shirt Machine
![Masthead](/_assets/74ab042c.jpeg)
Description
The physical interface for the shirt maker consists of laser-cut and bent steel around a hand-built walnut wooden frame. The unit houses an Arduino Mega which interfaces with the 17 rotary encoders, 10 digit keypad and momentary push button. Die-cut vinyl decals adhered to the steel face provide a label to each control on the interface.
The digital interface is a Cinder application which communicates with the Arduino to change the design parameters on the screen and update the shirt preview. A Node-based web service handles initial user design submissions and automates submitting shirt orders with Printful.
Special Thanks
Special thanks to Max Thorson & Chris Moen for their assistance on this one.

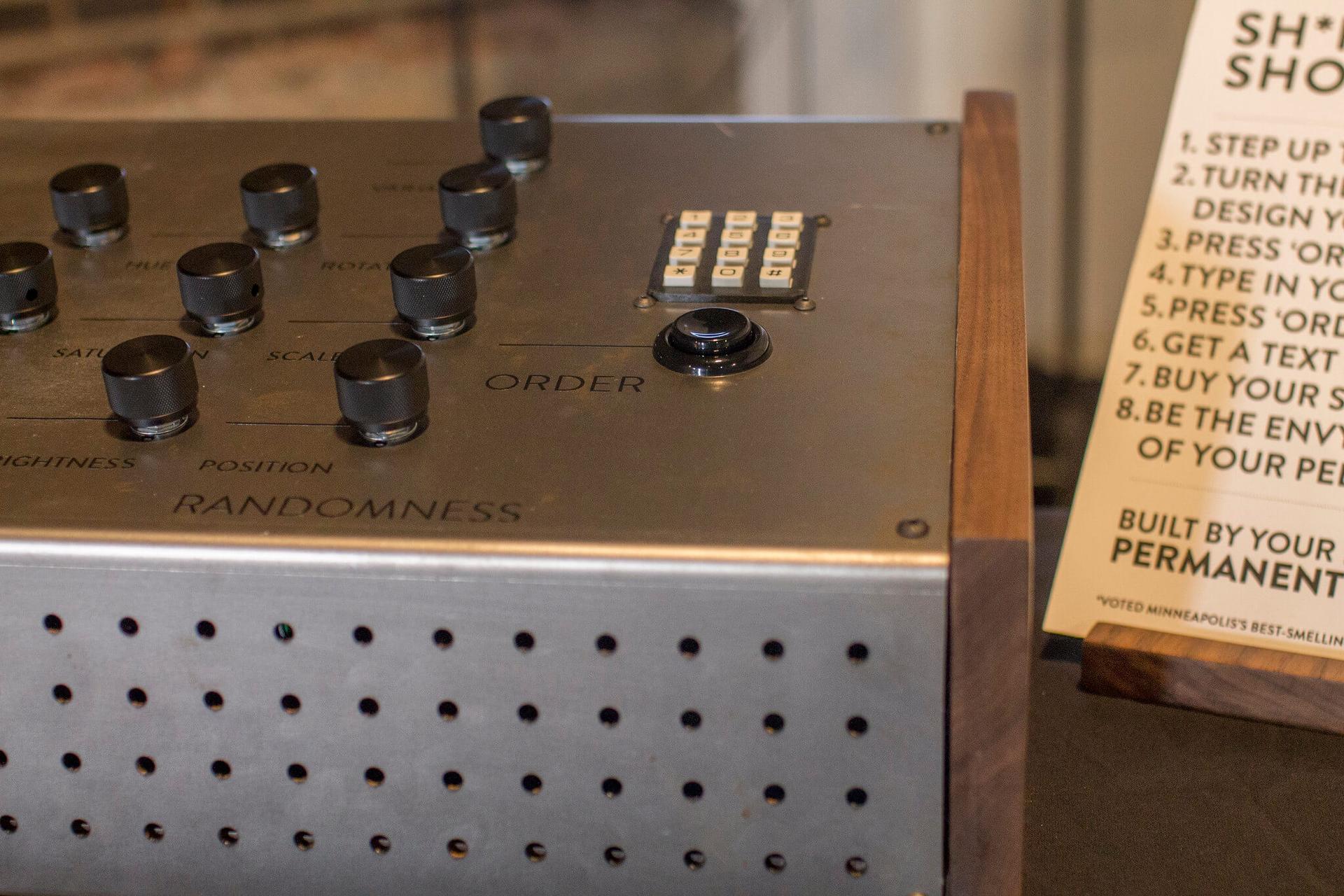

The keypad
![The keypad](/_assets/7afd1179.jpeg)

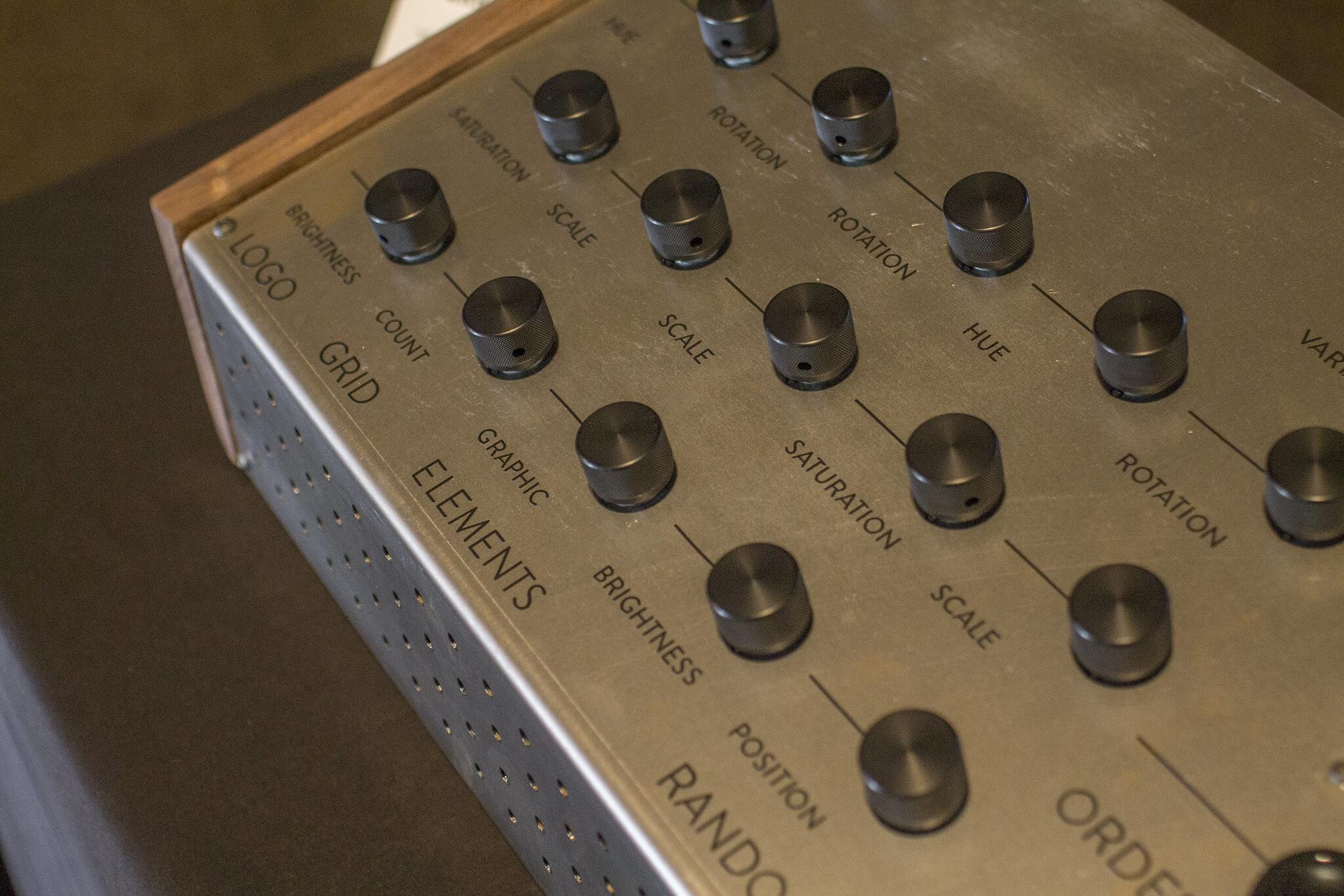

The dials
![The dials](/_assets/e25670bb.jpeg)
Satisfied customer
![Satisfied customer](/_assets/4535cbda.jpeg)

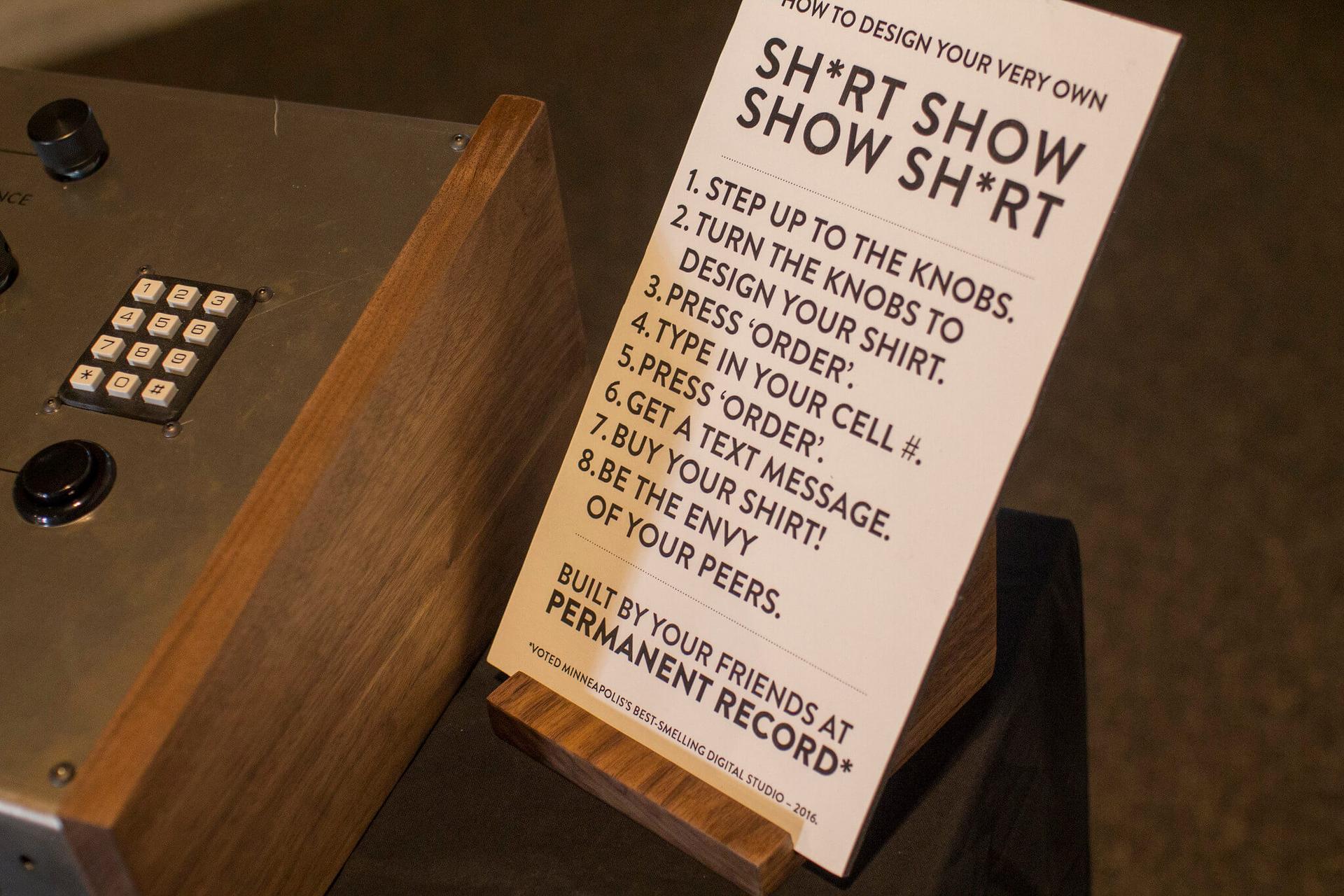

The instructions
![The instructions](/_assets/fed91141.jpeg)
The cost
![The cost](/_assets/73f37314.jpeg)
